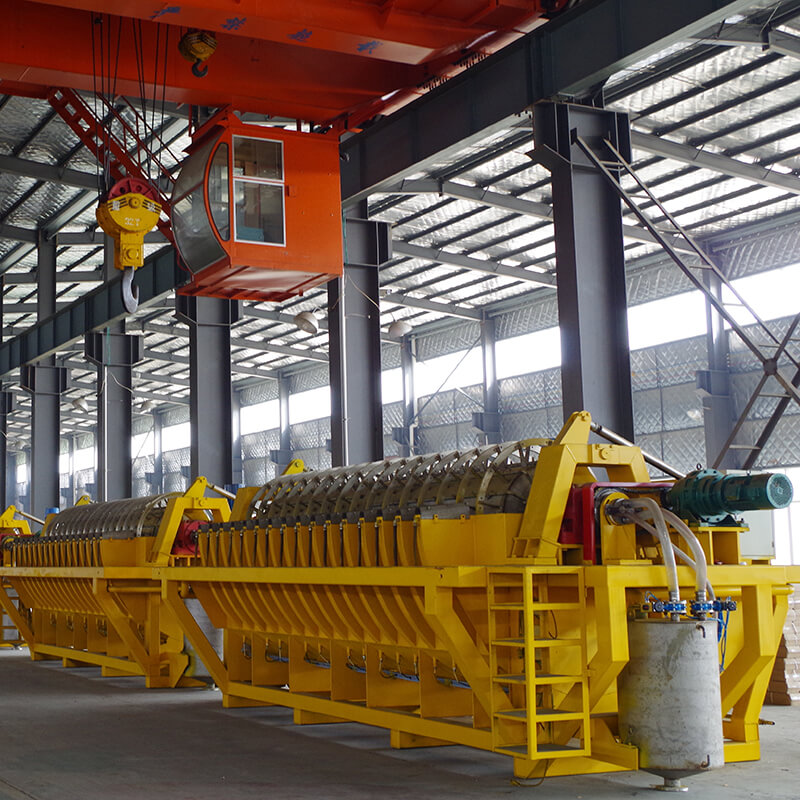

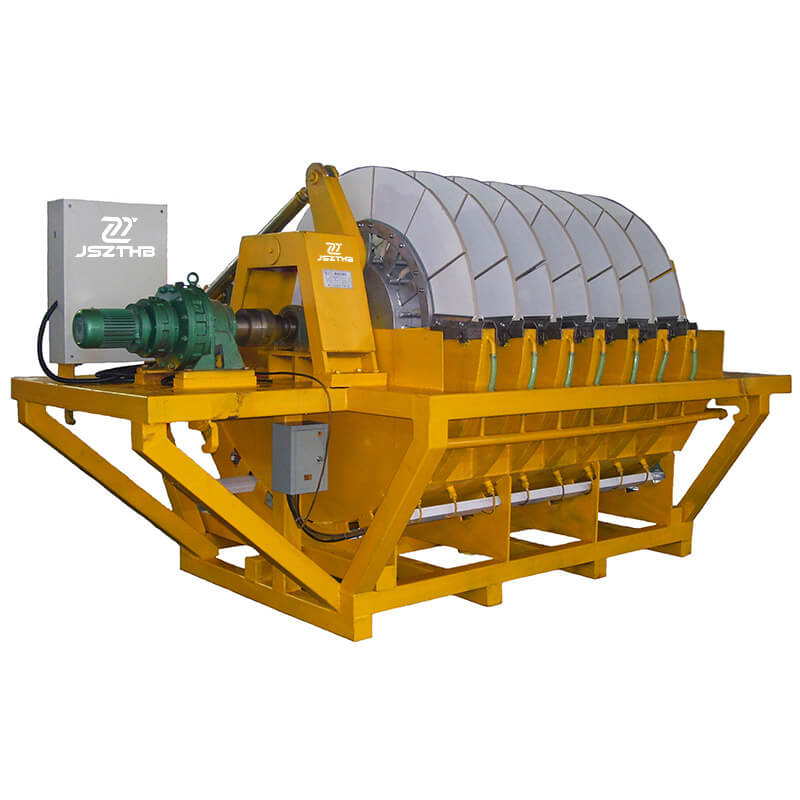

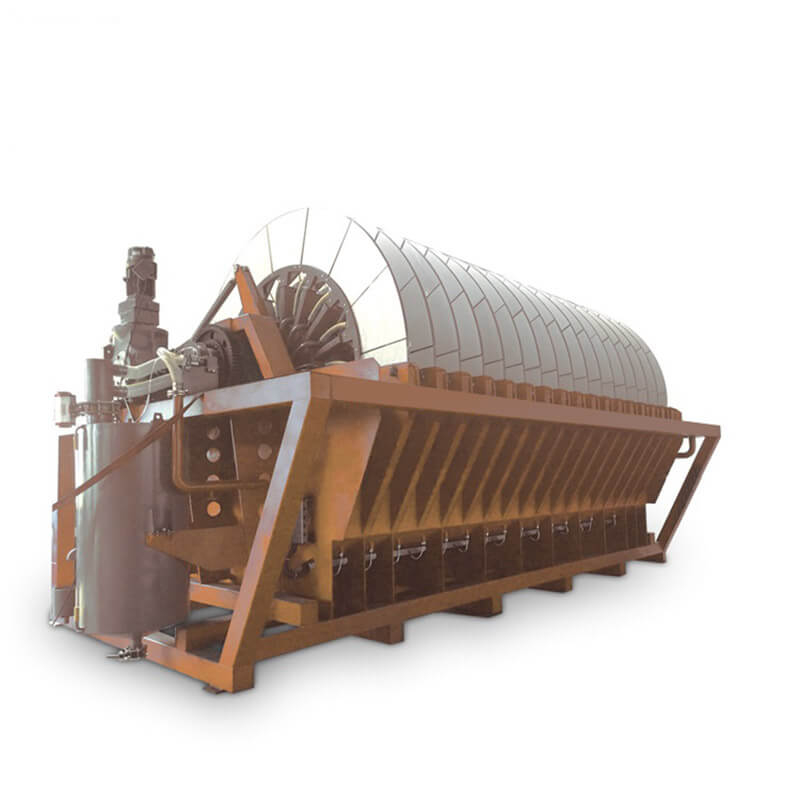

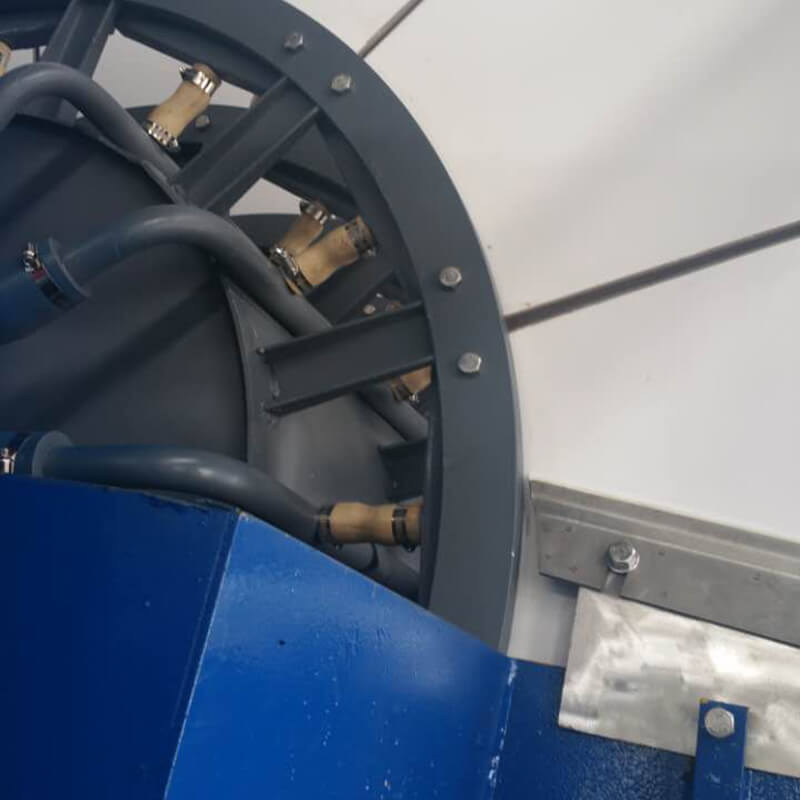

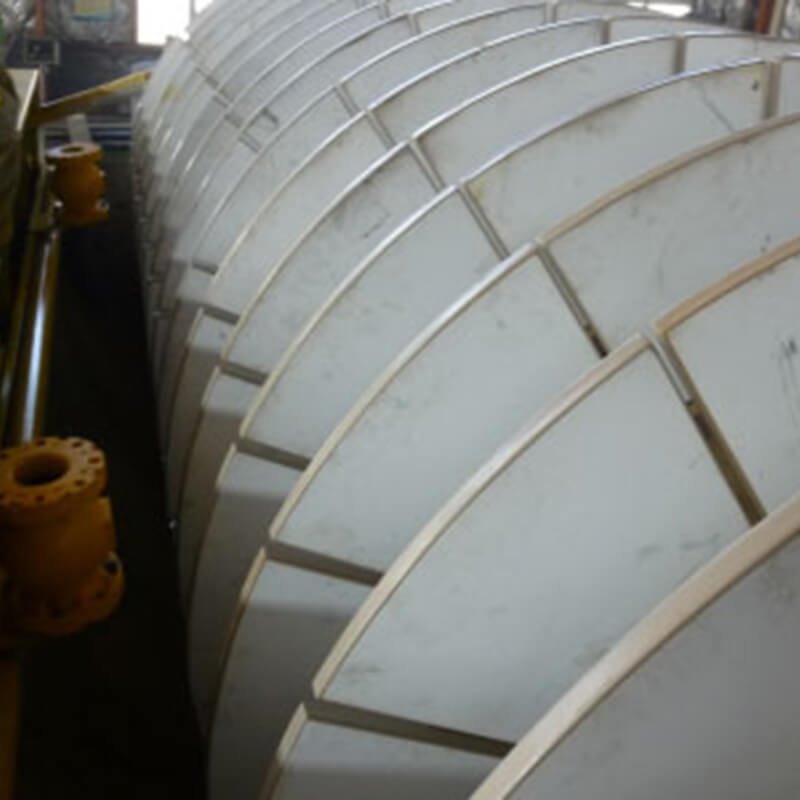

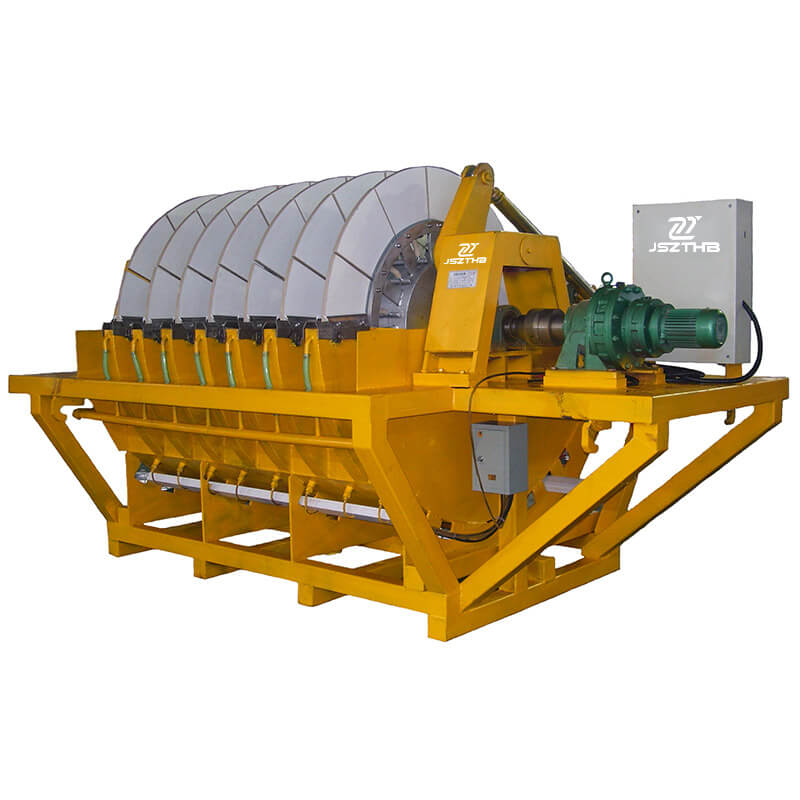

RX precision vacuum filter is composed of machinery and motor, ceramic filter plate with micropores and ultrasonic waves. It relies on vacuum suction and capillary action. Under the action of pressure difference, when the slurry passes through the ceramic filter, a filter cake is formed on the surface of the ceramic filter plate. At the same time, water flows out through the filter medium to achieve the purpose of solid-liquid separation. Ceramics Filtration Machines have the advantages of high filtration efficiency, low production cost, energy saving and environmental protection, and are widely used in mining, metallurgy, chemical industry, environmental protection and other industries.
Features:
1. High vacuum degree (vacuum degree 0.09-0.098MPa), low moisture content of filter cake;
2. The solid content of the filtrate is<25 ppm and can be used repeatedly to reduce emissions;
3. Compared with traditional filtration equipment, energy consumption is saved by more than 90%, with low energy consumption and low operating costs;
4. Compared with traditional filter equipment, filter cake washing is added, which is suitable for materials that need to be washed;
5. Using PLC and microcomputer combined with automatic valve control, it has a high degree of automation and reduces labor intensity;
6. Compact structure, small footprint, easy installation and maintenance;
7. Adopting advanced liquid drainage system, it can be used under any working conditions.
Equipment selection:
Rongxin Filtration Machines |

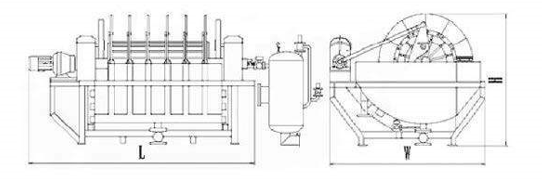

| RX30-10 | RX60-15 | RX80-16 | RX144-12 | RX240-20 |
Pan size | mm | 1900 | 2180 | 2210 | 3812 | 3812 |
host length | mm | 5800 | 7100 | 7680 | 9060 | 12260 |
host width | mm | 3170 | 3400 | 3595 | 5200 | 5200 |
Host height | mm | 2526 | 2880 | 3205 | 4800 | 4800 |
weight | kg | 9000 | 14000 | 17500 | 47000 | 69000 |
Installed power | kw | 26.63 | 46.28 | 57.26 | 100 | 145 |
Power consumption | kw | 20 | 37 | 46 | 70 | 100 |
Model/parameters | Filter disc (circle) | Filter cake quantity | Tank volume (M3) | Installed power (KW) | Equipment weight(T) | Movement power (KW) | Host length (M) | Host width(M) | Host height (M) |
RX-1 | 1 | 12 | 0.21 | 3.5 | 1 | 2 | 1.6 | 1.4 | 1.5 |
RX-4 | 2 | 24 | 1 | 7 | 2.0 | 3 | 2.4 | 2.5 | 2.1 |
RX-6 | 2 | 24 | 1.2 | 7 | 3.0 | 6 | 2.4 | 2.9 | 2.5 |
RX-9 | 3 | 36 | 1.7 | 9 | 3.4 | 7 | 2.7 | 2.9 | 2.5 |
RX-12 | 4 | 48 | 2.2 | 11 | 4.0 | 7.5 | 3 | 2.9 | 2.5 |
RX-15 | 5 | 60 | 2.7 | 11.5 | 4.5 | 8 | 3.3 | 3 | 2.5 |
RX-21 | 7 | 84 | 4.0 | 13.5 | 9 | 9 | 4.6 | 3 | 2.6 |
RX-24 | 8 | 96 | 4.5 | 16.5 | 9.5 | 10.5 | 4.9 | 3 | 2.6 |
RX-27 | 9 | 108 | 5 | 17 | 10 | 11 | 5.2 | 3 | 2.6 |
RX-30 | 10 | 120 | 5.5 | 17.5 | 10.5 | 11.5 | 5.5 | 3 | 2.6 |
RX-36 | 12 | 144 | 7 | 23 | 11.5 | 16 | 6.6 | 3 | 2.6 |
RX-45 | 15 | 180 | 8.5 | 25 | 13 | 19 | 7.5 | 3 | 2.6 |
RX-60 | 15 | 180 | 12.5 | 33 | 17 | 22 | 7.5 | 3.3 | 3.0 |
RX-80 | 20 | 240 | 16.2 | 40 | 19 | 24 | 9 | 3.3 | 3.0 |
RX-100 | 20 | 240 | 18.5 | 53 | 25 | 35 | 11 | 3.6 | 3.3 |
RX-120 | 24 | 288 | 22 | 60 | 30 | 40 | 12.2 | 3.6 | 3.3 |
RX-204 | 17 | 255 | 50 | 132 | 58 | 96 | 11.06 | 5.2 | 4.8 |
RX-240 | 20 | 300 | 65 | 145 | 62 | 100 | 12.26 | 5.2 | 4.9 |
