Introduction:
Ceramic Tubular Membranes is a high-performance membrane technology used for liquid or gas separation and filtration. These membranes are typically made of ceramic materials and have microporous or nanoporous structures that allow selective delivery of specific molecules or ions while excluding larger particles and impurities. Ceramic Tubular MembranesIt is widely used in water treatment, chemical industry, food and beverage, biopharmaceutical and other fields to purify and concentrate fluids to improve product quality and production efficiency.
Known for their excellent corrosion resistance, high temperature and pressure performance, long life and efficient separation effects, these membranes are suitable for use in a variety of harsh industrial and environmental conditions. In addition, Ceramic Tubular Membranes can be cleaned and regenerated to extend its service life and reduce maintenance costs.
principle:
The separation principle of Ceramic Tubular Membranes is based on the micropore or nanopore structure on the membrane surface. These pores allow the passage of specific molecules or ions, while blocking the passage of larger particles, impurities and harmful substances. Liquid or gas passes through a membrane inside a ceramic tube, separating pure products while trapping waste on the membrane surface.
Advantages:
- High corrosion resistance: Ceramic materials have excellent corrosion resistance and are suitable for handling corrosive substances.
- High temperature and high pressure performance: Suitable for applications under high temperature and high pressure conditions.
- Long life: Ceramic Tubular Membranes has a long service life and is not easily damaged or deformed.
- Efficient separation: capable of achieving efficient separation and filtration.
- Renewability: Through cleaning and regeneration, the service life can be extended and maintenance costs reduced.

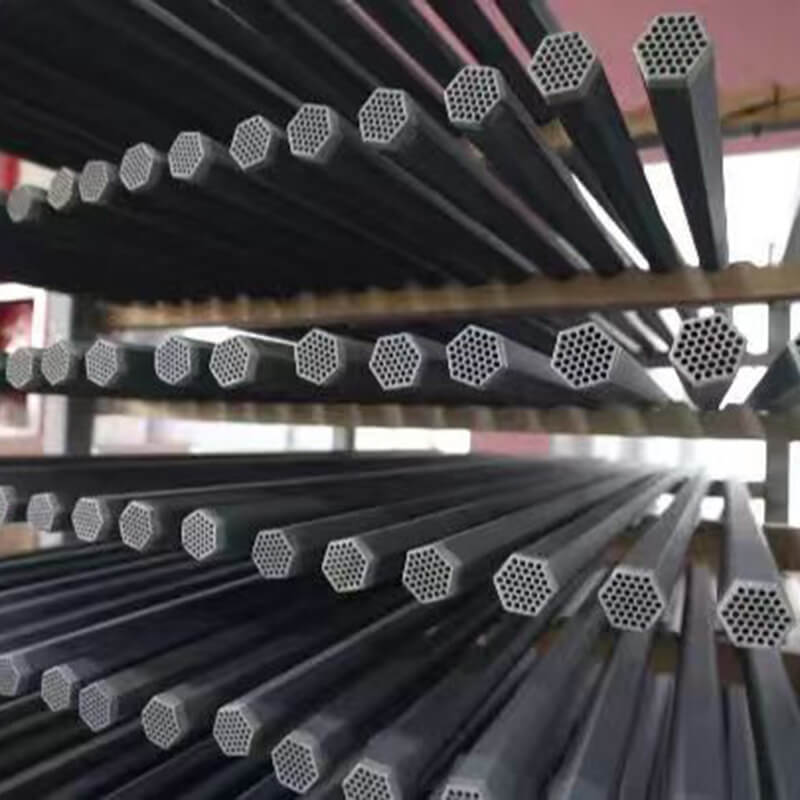

Specifications and models:
Overall dimensions | Outer diameter 25mm, length 250mm | Outer diameter 25mm, length 1178mm | Outer diameter 41mm, length 1000mm | |||||||
channel shape | 19 channels | 23 channels | 7 channels | 8 channels | 19 channels | 23 channels | 49 channels | 19 channels | 25 channels | 37 channels |
Channel diameter | 3.5mm | 3.5mm | 6mm | 6mm | 3.5mm | 3.5mm | 2.5mm | 6mm | 5.5mm | 3.6mm |
membrane area | 0.05m2 | 0.07m2 | 0.16m2 | 0.2m2 | 0.25m2 | 0.35m2 | 0.5m2 | 0.35m2 | 0.47m2 | 0.42m2 |
Burst pressure of membrane tube: 90Bar, membrane support TiO2, membrane layer TiO2/ZrO2 | ||||||||||
| Cutting molecular weight (membrane pore size) | Microfiltration | 0.14um, 0.2um, 0.45um, 0.8um, 1.4um |
| Ultrafiltration | 15KD, 50KD, 150KD, 300KD | |
| Fine ultrafiltration | 1KD, 3KD, 5KD, 8KD |

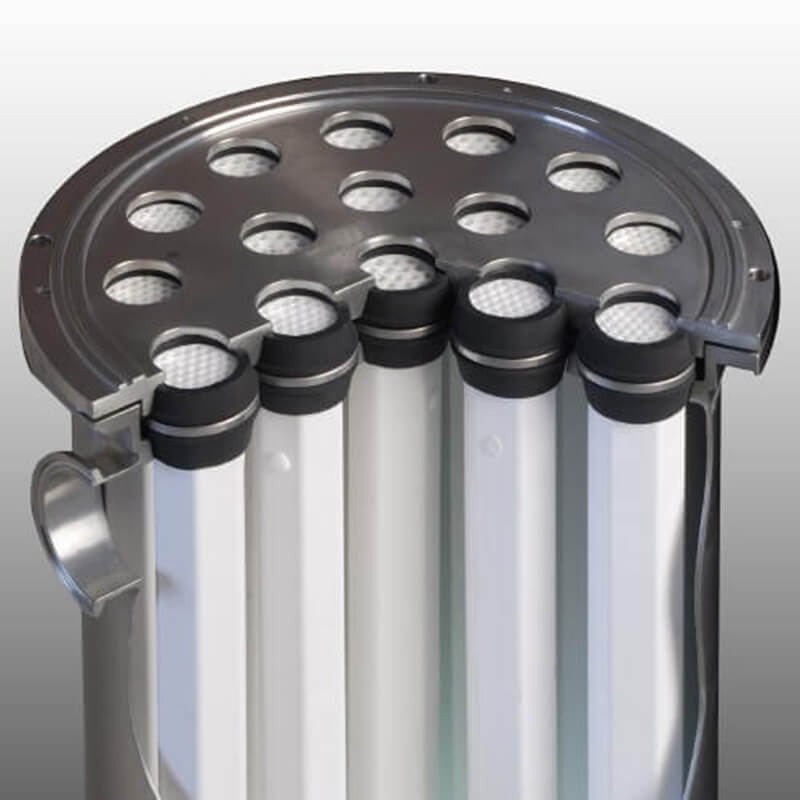

Ceramic membrane module type:
Membrane module form: 1 core, 3 core, 7 core, 12 core, 19 core, 25 core, 37 core, 55 core, 99 core
Membrane module shell material: SUS304, SUS316 (L) stainless steel
Seal material: silicone rubber, fluorine rubber, EPDM rubber
Nominal pressure: 1.0 or 1.6MPa
Optional membrane length: 1200-1178-1000mm
Connection method: flange, clamp connection
